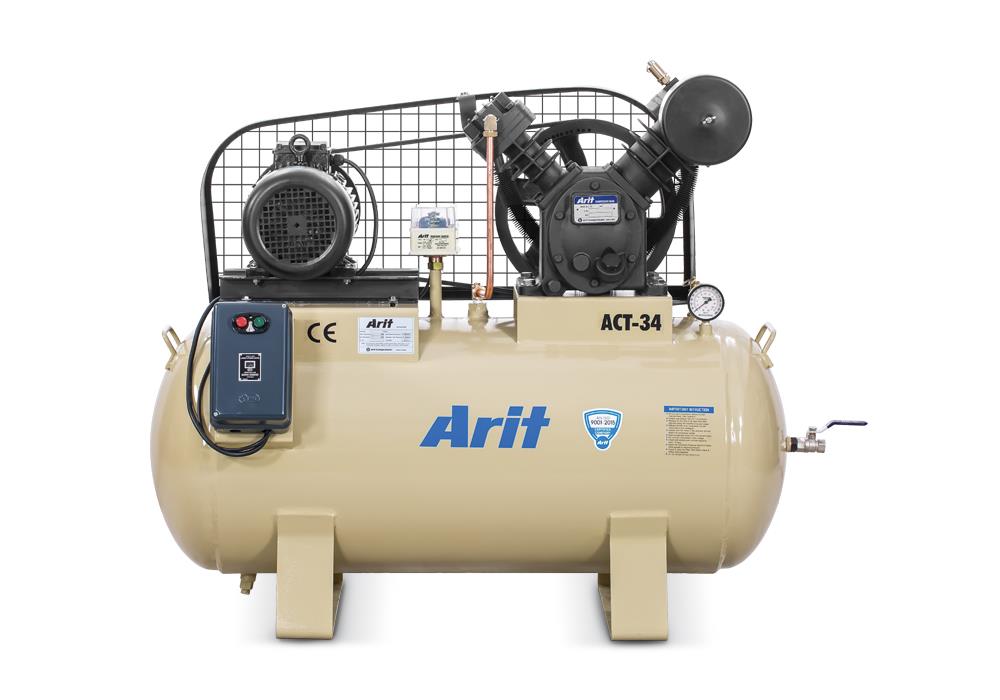

Arit Compressor

ACT-34
ACT-34

ACT-34
HP 3
Nos. Of Piston 2
Piston Displacement C.F.M. 9.79
Piston Bore X Stoke (In MM) 3 X 1 ¾ X 2 ¾
Tank Capacity In Liter 175
Tank Size 18” X 42”
Max. Working Pressure 12.30
Shell & Dish End Thickness 5 MM
Compressor RPM 823
Motor RPM 1440
V-Belt A-74 – 1 Nos.
Oil 0.700 Ltr
Compressor Weight (Approx) 156 Kg
Dimension - L X W X H (Approx) 45” X 22” X 42”

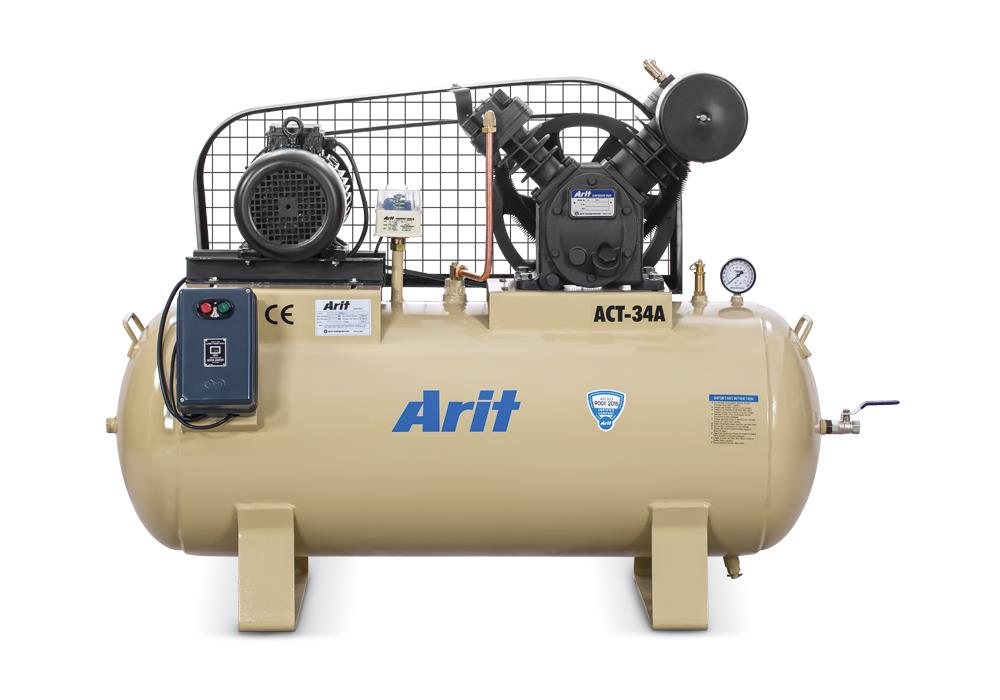

ACT-34A
ACT-34A

ACT-34A
HP 3
Nos. Of Piston 2
Piston Displacement C.F.M. 9.79
Piston Bore X Stoke (In MM) 3 X 1 ¾ X 2 ¾
Tank Capacity In Liter 200
Tank Size 18” X 48”
Max. Working Pressure 12.30
Shell & Dish End Thickness 5 MM
Compressor RPM 823
Motor RPM 1440
V-Belt A-76 – 1 Nos.
Oil 0.700 Ltr
Compressor Weight (Approx) 171 Kg
Dimension - L X W X H (Approx) 52” X 22” X 41”

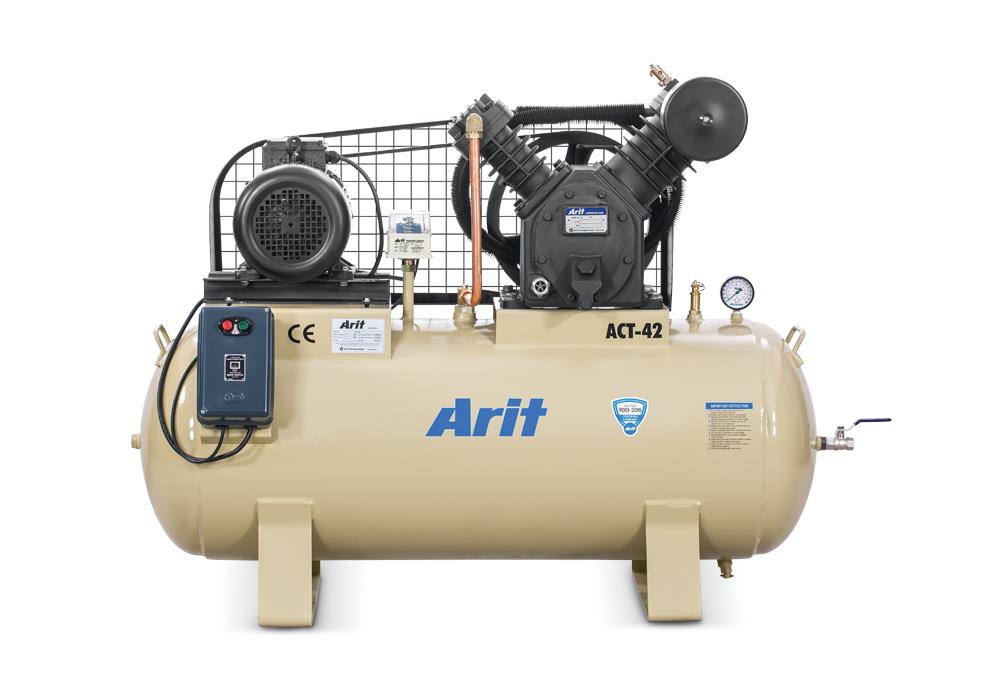

ACT-42
ACT-42

ACT-42
HP 5
Nos. Of Piston 2
Piston Displacement C.F.M. 17.30
Piston Bore X Stoke (In MM) 4 X 2 ½ X 2 ¾
Tank Capacity In Liter 200
Tank Size 18” X 48”
Max. Working Pressure 12.30
Shell & Dish End Thickness 5 MM
Compressor RPM 823
Motor RPM 1440
V-Belt A-76 – 1 Nos.
Oil 1.500 Ltr
Compressor Weight (Approx) 181 Kg
Dimension - L X W X H (Approx) 53” X 22” X 43”

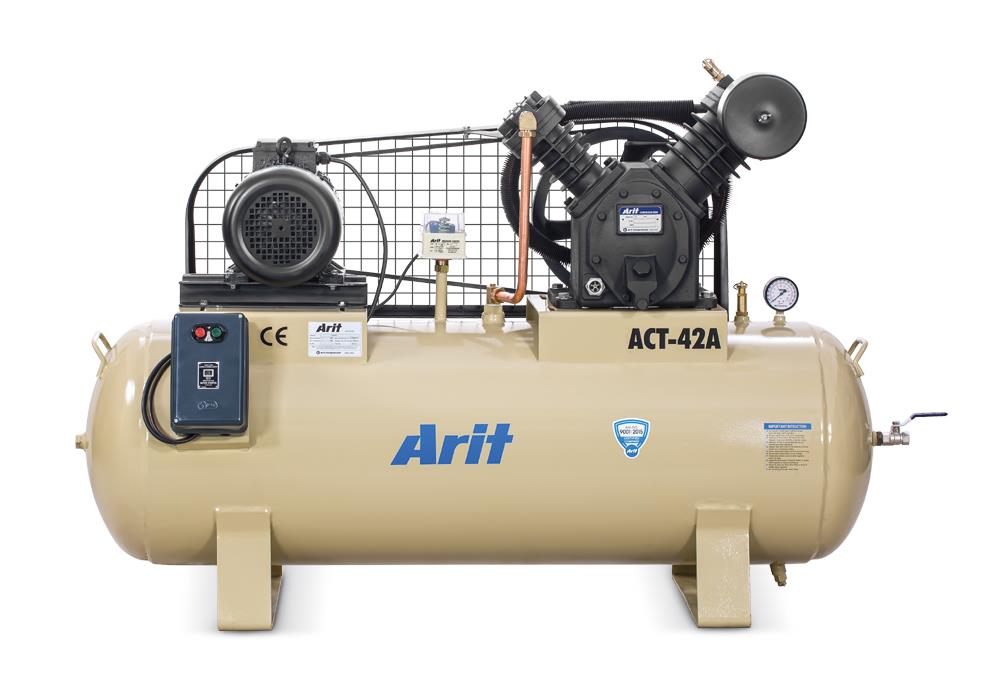

ACT-42A
ACT-42A

ACT-42A
HP 5
Nos. Of Piston 2
Piston Displacement C.F.M. 17.30
Piston Bore X Stoke (In MM) 4 X 2 ½ X 2 ¾
Tank Capacity In Liter 240
Tank Size 18” X 58”
Max. Working Pressure 12.30
Shell & Dish End Thickness 5 MM
Compressor RPM 823
Motor RPM 1440
V-Belt A-85 – 1 Nos.
Oil 1.500 Ltr
Compressor Weight (Approx) 210 Kg
Dimension - L X W X H (Approx) 60” X 22” X 44”

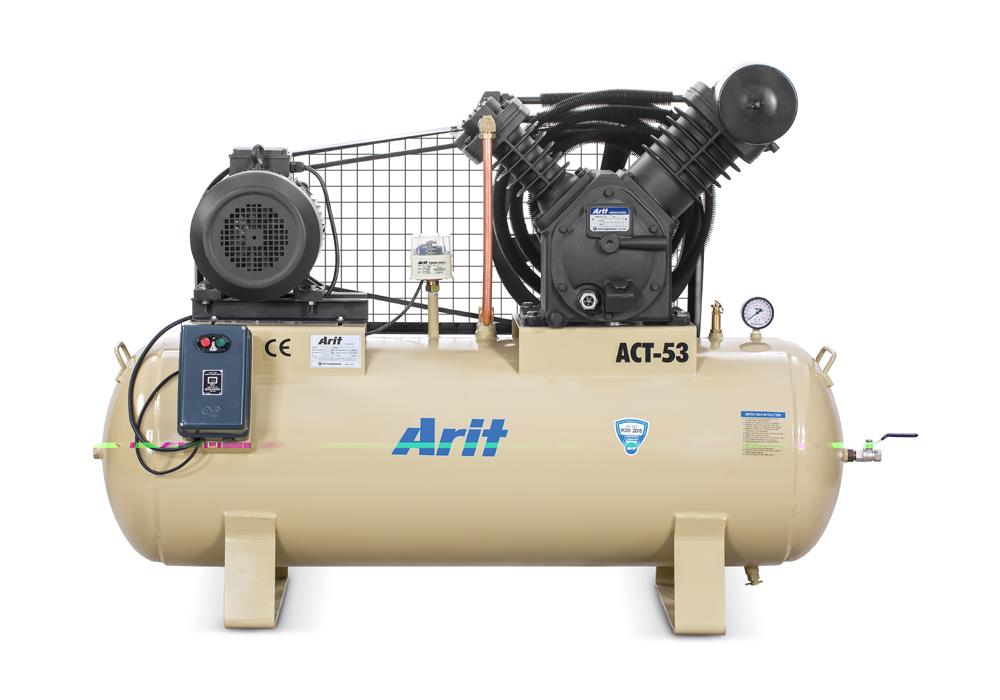

ACT-53
ACT-53

ACT-53
HP 7.5
Nos. Of Piston 2
Piston Displacement C.F.M. 29.80
Piston Bore X Stoke (In MM) 5 X 2 ¾ X 3 ½
Tank Capacity In Liter 240
Tank Size 18” X 58”
Max. Working Pressure 12.30
Shell & Dish End Thickness 5 MM
Compressor RPM 640
Motor RPM 1440
V-Belt B-90 – 1 Nos.
Oil 2.000 Ltr
Compressor Weight (Approx) 240 Kg
Dimension - L X W X H (Approx) 60” X 22” X 46”

ACT-2345S
ACT-2345S

ACT-2345S
HP 10
Nos. Of Piston 2
Piston Displacement C.F.M. 36.35
Piston Bore X Stoke (In MM) 5 X 2 ¾ X 3 ½
Tank Capacity In Liter 240
Tank Size 18” X 58”
Max. Working Pressure 12.30
Shell & Dish End Thickness 5 MM
Compressor RPM 720
Motor RPM 1440
V-Belt A-95 – 2 Nos.
Oil 2.000 Ltr
Compressor Weight (Approx) 268 Kg
Dimension - L X W X H (Approx) 60” X 22” X 46”

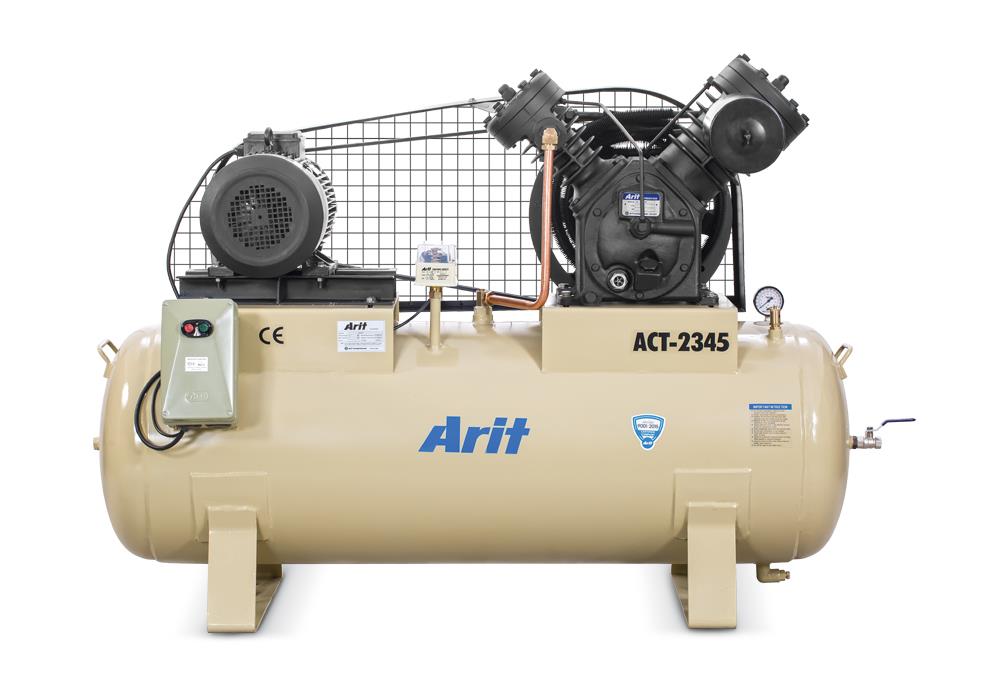

ACT-2345
ACT-2345

ACT-2345
HP 10
Nos. Of Piston 2
Piston Displacement C.F.M. 36.35
Piston Bore X Stoke (In MM) 5 X 2 ¾ X 3 ½
Tank Capacity In Liter 300
Tank Size 20” X 60”
Max. Working Pressure 12.30
Shell & Dish End Thickness 5 MM
Compressor RPM 720
Motor RPM 1440
V-Belt A-101 – 2 Nos.
Oil 2.000 Ltr
Compressor Weight (Approx) 299 Kg
Dimension - L X W X H (Approx) 70” X 30” X 51”

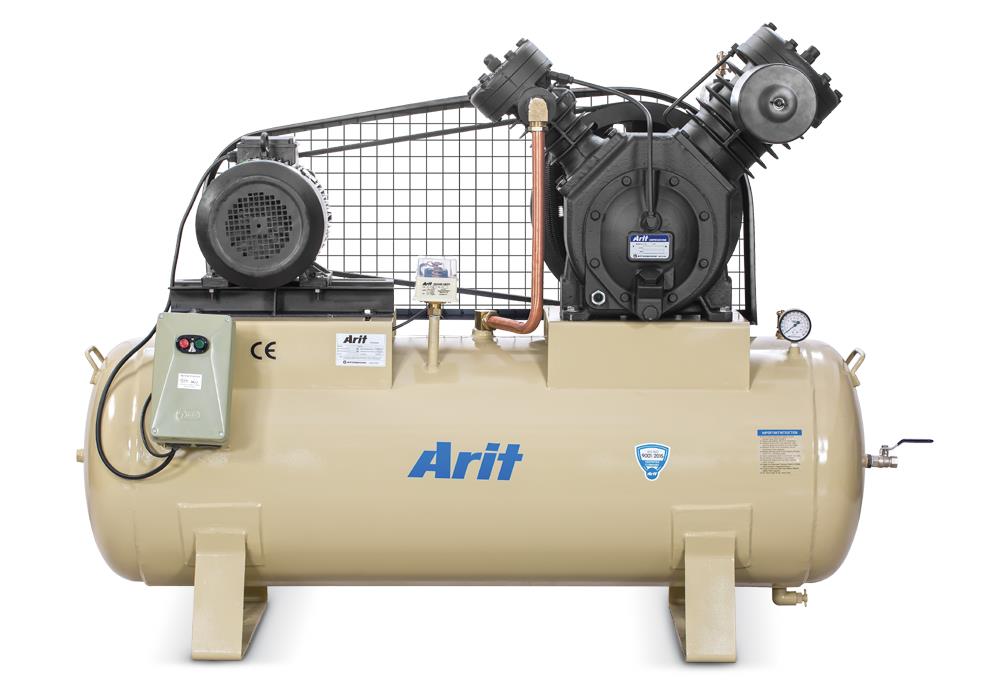

ACT-21T2
ACT-21T2

ACT-21T2
HP 12.50
Nos. Of Piston 2
Piston Displacement C.F.M. 44
Piston Bore X Stoke (In MM) 5 ½ X 3 X 4
Tank Capacity In Liter 300
Tank Size 20” X 60”
Max. Working Pressure 12.30
Shell & Dish End Thickness 5 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-102 – 2 Nos.
Oil 2.500 Ltr
Compressor Weight (Approx) 304 Kg
Dimension - L X W X H (Approx) 70” X 30” X 52”

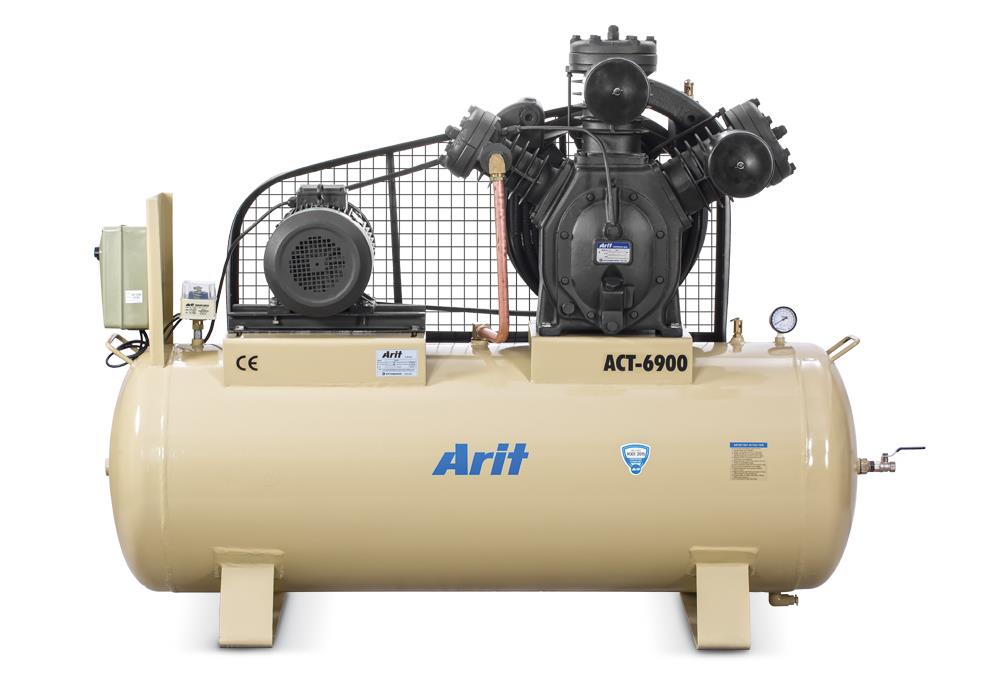

ACT-6900
ACT-6900

ACT-6900
HP 15
Nos. Of Piston 3
Piston Displacement C.F.M. 62.20
Piston Bore X Stoke (In MM) 5 X 5 X 3 ½ X 4
Tank Capacity In Liter 300
Tank Size 20” X 60”
Max. Working Pressure 12.30
Shell & Dish End Thickness 5 MM
Compressor RPM 825
Motor RPM 1440
V-Belt C-110 – 2 Nos.
Oil 5.000 Ltr
Compressor Weight (Approx)  499 Kg
Dimension - L X W X H (Approx) 70” X 31” X 58”
