Arit Compressor

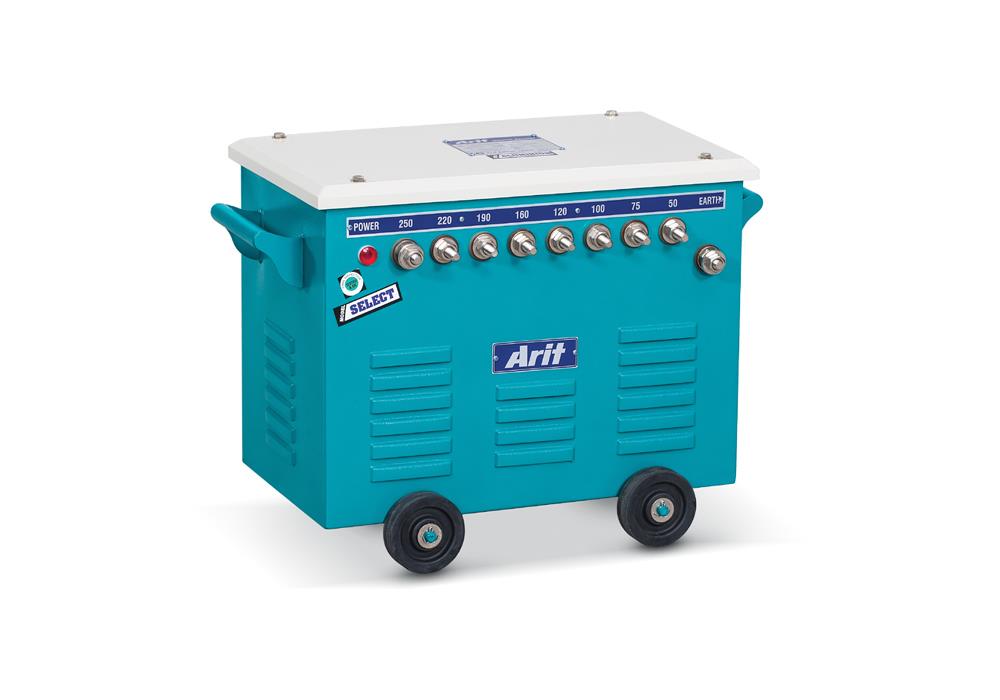

Stud Type ARC Welding Machine, <p><strong>Model Type</strong><br />
150ASS to 250ASS:- Select Model<br />
150AHS to 600A3HS:- Heavy Duty Model</p>
<p><strong>Frequency</strong><br />
150ASS to 600A3HS:- 50Hz</p>
<p><strong>Insulation Class</strong><br />
150ASS to 600A3HS:- A</p>
<p><strong>Cooling</strong><br />
150ASS to 600A3HS:- Natural Air</p>

Model Type
150ASS to 250ASS:- Select Model
150AHS to 600A3HS:- Heavy Duty Model

Frequency
150ASS to 600A3HS:- 50Hz

Insulation Class
150ASS to 600A3HS:- A

Cooling
150ASS to 600A3HS:- Natural Air

Model Input Supply Phase Welding current Rang Open Circuit Voltage Max. Continuous
Welding 60% Duty Cycle
Electrode size (MM) Dimensions in mm (Approx) Weight (Approx)
Volts Low High Volts AMPS Min Max Length Width Height Kg
150ASS 230/440 1/2 45 150 45 125 2 3.15 560 385 400 42
200ASS 230/440 1/2 50 200 50 170 2 3.15 660 400 480 53
250ASS 230/440 1/2 50 250 50 220 2.5 3.15 685 435 500 61
150AHS 230/440 1/2 45 150 50 150 2 3.15 570 410 400 53
200AHS 230/440 1/2 50 200 55 200 2 3.15 670 435 490 62
250AHS 230/440 1/2 50 250 60 250 2.5 3.15 735 445 515 70
300AHS 230/440 1/2 50 300 60 300 2.5 4 760 450 525 82
400AHS 230/440 1/2 50 400 60 400 2.5 4 800 470 550 98
600AHS 380/440 2 50 600 60 600 3.15 5 910 520 650 120
300A3HS 380/440 3 50 300 60 300 2.5 4 800 470 550 115
400A3HS 380/440 3 50 400 60 400 2.5 4 800 470 550 135
600A3HS 380/440 3 50 600 60 600 3.15 5 800 470 550 175
