Arit Compressor

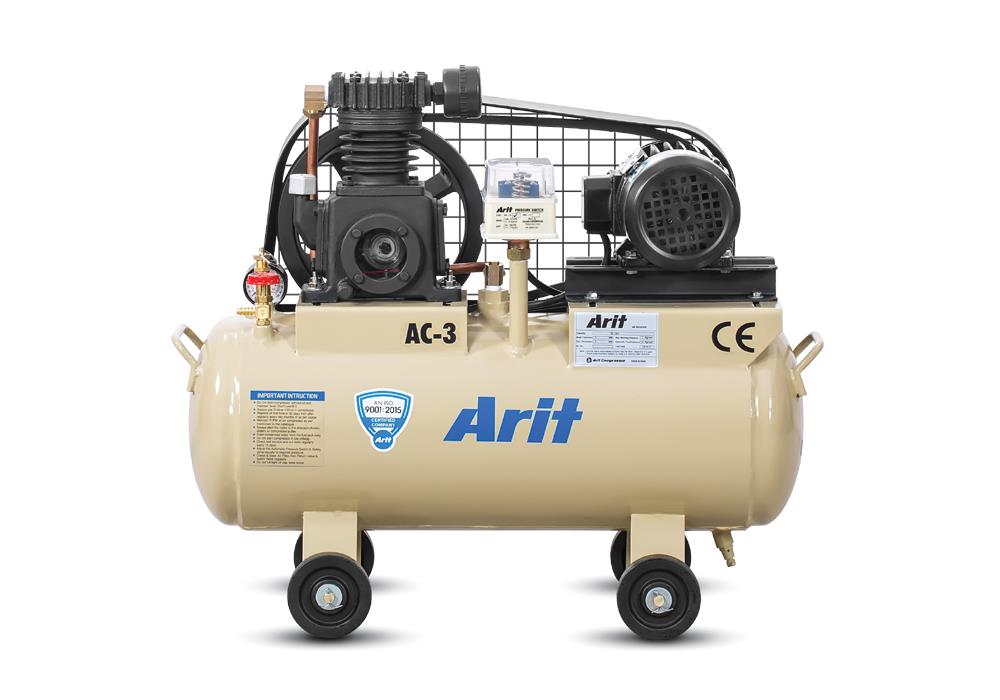

AC-3
AC-3

AC-3
HP 0.5
Nos. Of Piston 1
Piston Displacement C.F.M. 2.7
Piston Bore X Stoke (In MM) 57.15 X 40.00
Tank Capacity In Liter 36
Tank Size 10” X 28”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-50 – 1 Nos.
Oil 0.250 Ltr
Compressor Weight (Approx) 41 Kg
Dimension - L X W X H (Approx) 29” X 11” X 26”

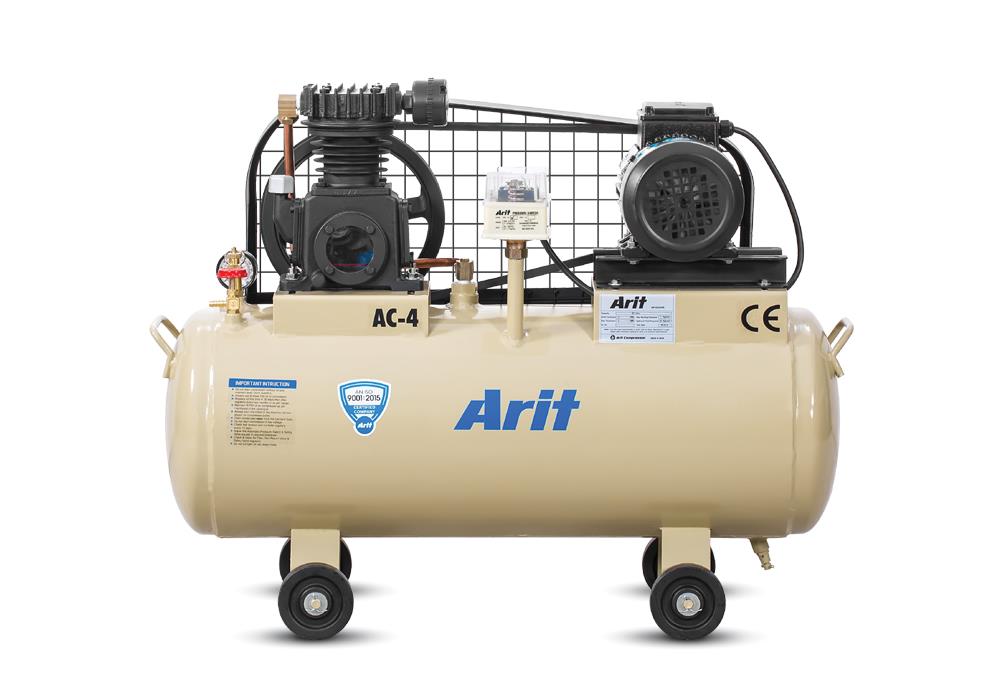

AC-4
AC-4

AC-4
HP 1
Nos. Of Piston 1
Piston Displacement C.F.M. 3.35
Piston Bore X Stoke (In MM) 63.50 X 40.00
Tank Capacity In Liter 60
Tank Size 12” X 32”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-56 – 1 Nos.
Oil 0.250 Ltr.
Compressor Weight (Approx) 50 Kg
Dimension - L X W X H (Approx) 36” X 12” X 30”

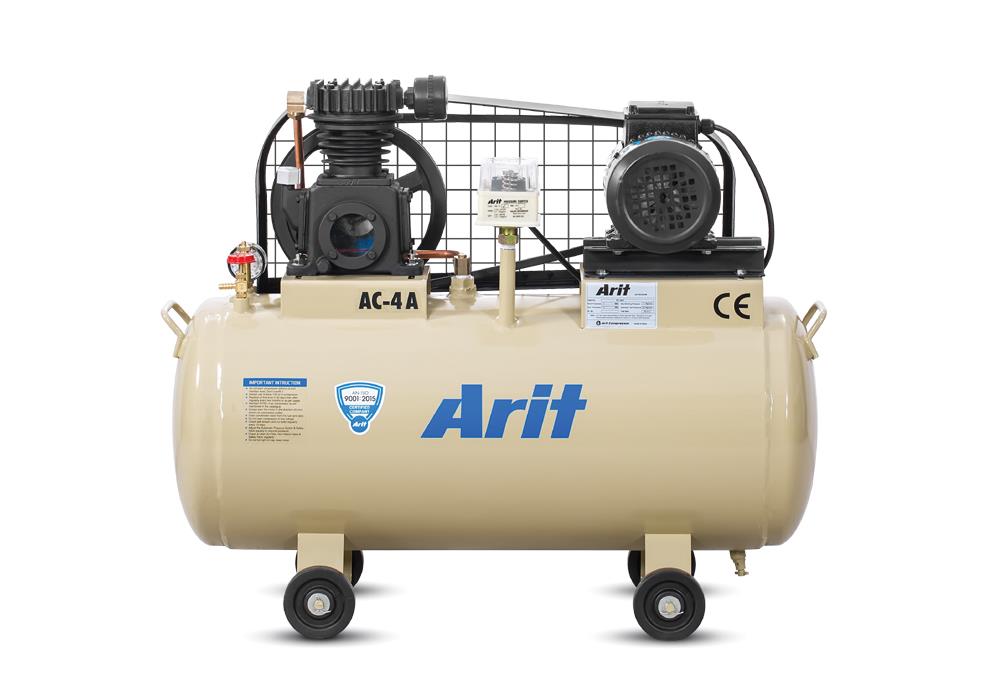

AC-4A
AC-4A

AC-4A
HP 1
Nos. Of Piston 1
Piston Displacement C.F.M. 3.35
Piston Bore X Stoke (In MM) 63.50 X 40.00
Tank Capacity In Liter 80
Tank Size 14” X 32”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-56 – 1 Nos.
Oil 0.250 Ltr
Compressor Weight (Approx) 56 Kg
Dimension - L X W X H (Approx) 36” X 14” X 30”

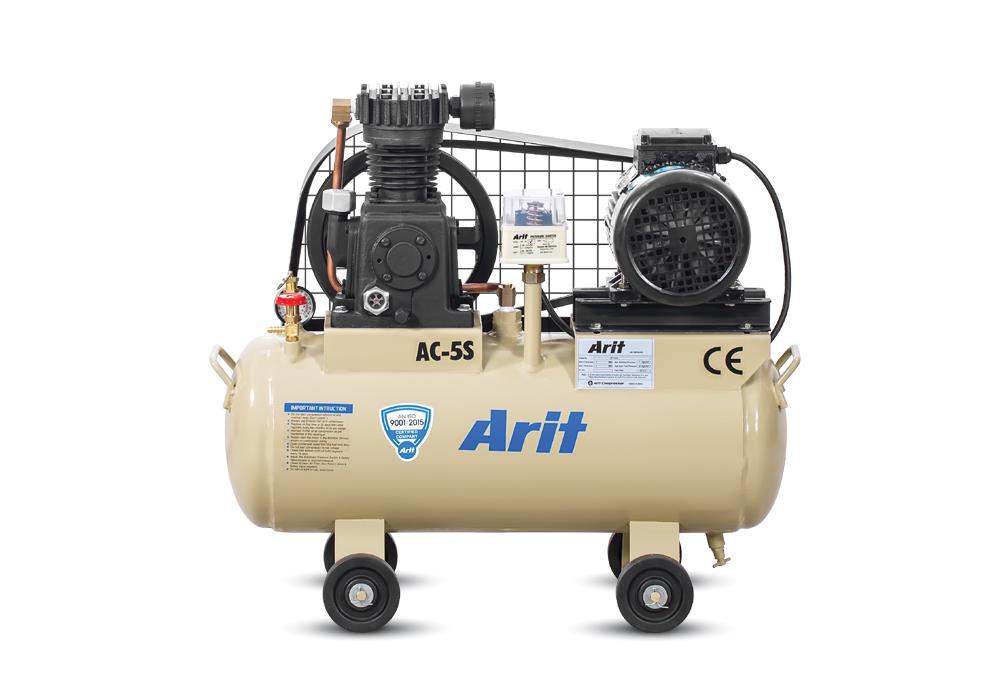

AC-5S
AC-5S

AC-5S
HP 1
Nos. Of Piston 2
Piston Displacement C.F.M. 5.25
Piston Bore X Stoke (In MM) 50.80 X 50.80
Tank Capacity In Liter 36
Tank Size 10” X 28”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-50 – 1 Nos.
Oil 0.350 Ltr
Compressor Weight (Approx) 50 Kg
Dimension - L X W X H (Approx) 29” X 11” X 27”

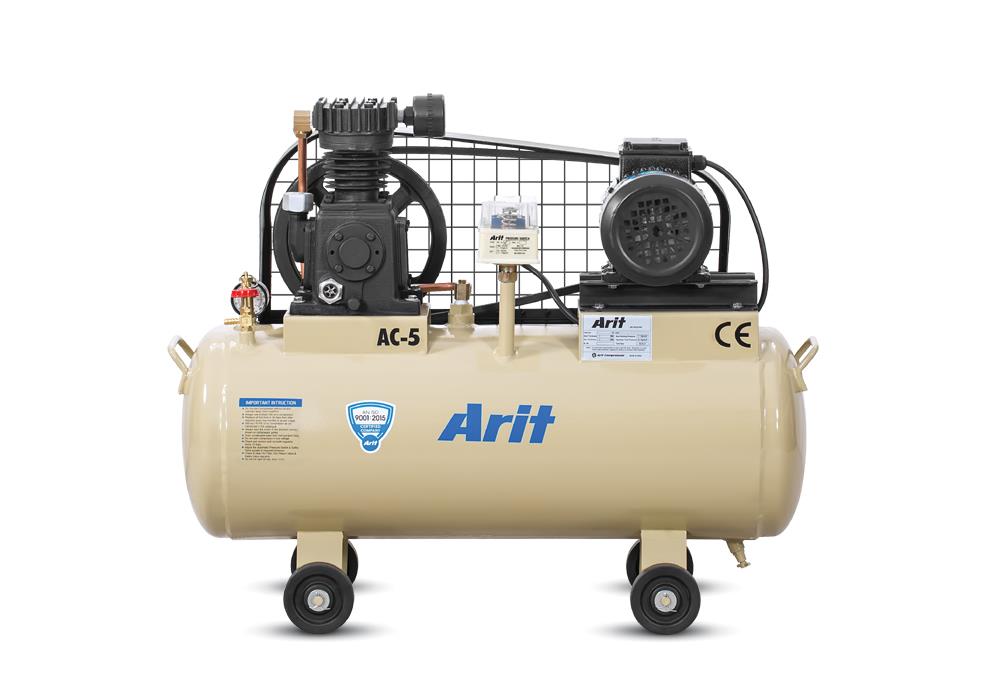

AC-5
AC-5

AC-5
HP 1
Nos. Of Piston 2
Piston Displacement C.F.M. 5.25
Piston Bore X Stoke (In MM) 50.80 X 50.80
Tank Capacity In Liter 60
Tank Size 12” X 32”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-56 – 1 Nos.
Oil 0.350 Ltr
Compressor Weight (Approx) 60 Kg
Dimension - L X W X H (Approx) 36” X 12” X 31”

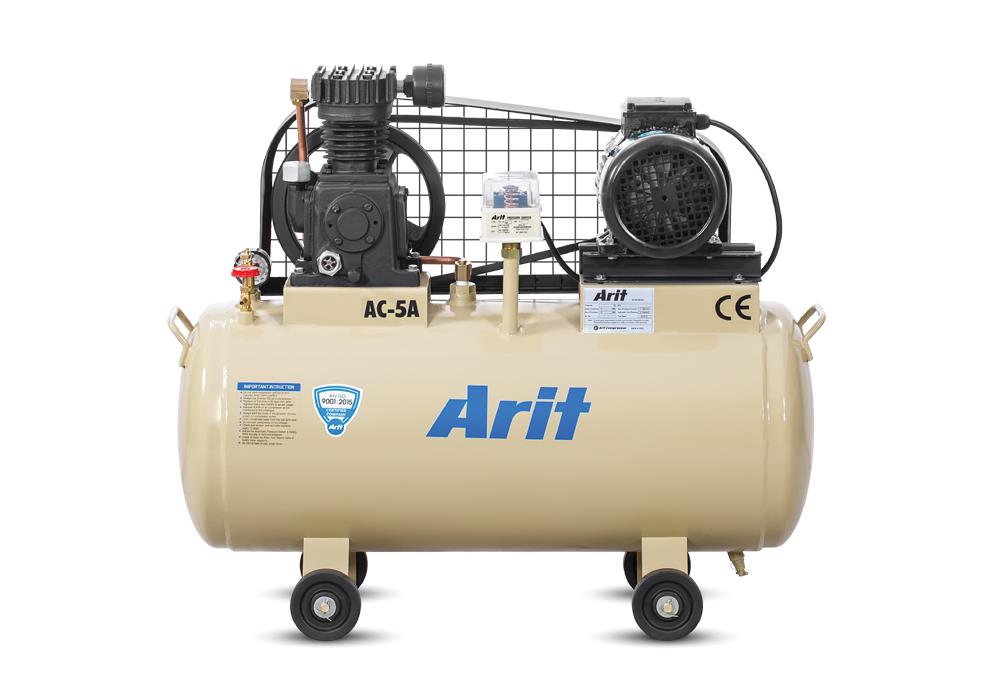

AC-5A
AC-5A

AC-5A
HP 1
Nos. Of Piston 2
Piston Displacement C.F.M. 5.25
Piston Bore X Stoke (In MM) 50.80 X 50.80
Tank Capacity In Liter 80
Tank Size 14” X 32”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-56 – 1 Nos.
Oil 0.350 Ltr
Compressor Weight (Approx) 64 Kg
Dimension - L X W X H (Approx) 36” X 14” X 31”

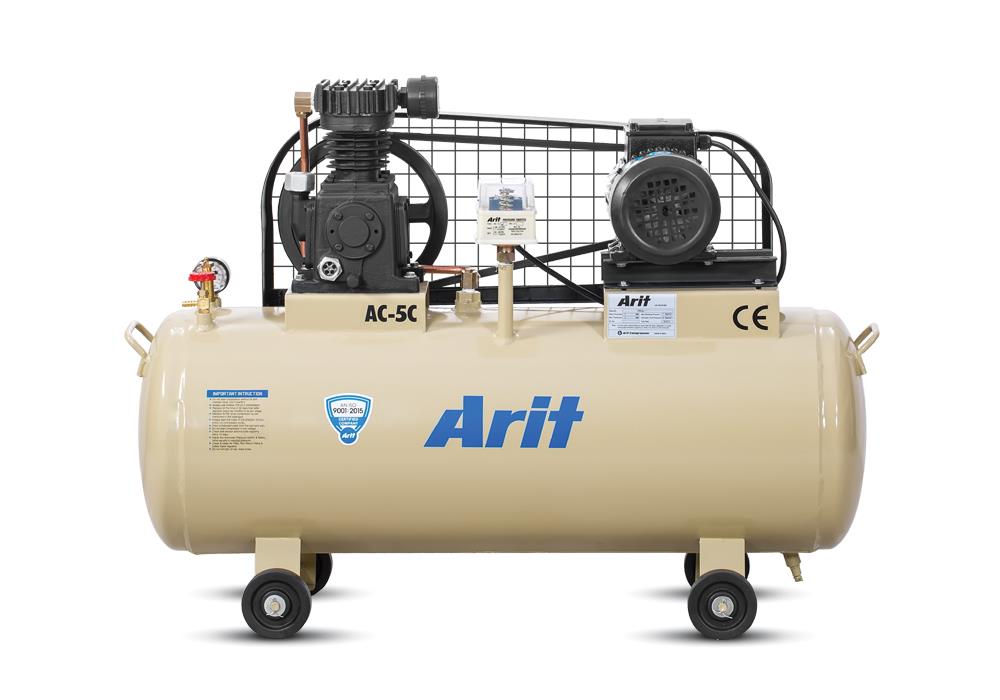

AC-5C
AC-5C

AC-5C
HP 1
Nos. Of Piston 2
Piston Displacement C.F.M. 5.25
Piston Bore X Stoke (In MM) 50.80 X 50.80
Tank Capacity In Liter 105
Tank Size 14” X 36”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-57 – 1 Nos.
Oil 0.350 Ltr
Compressor Weight (Approx) 65 Kg
Dimension - L X W X H (Approx) 41” X 14” X 31”

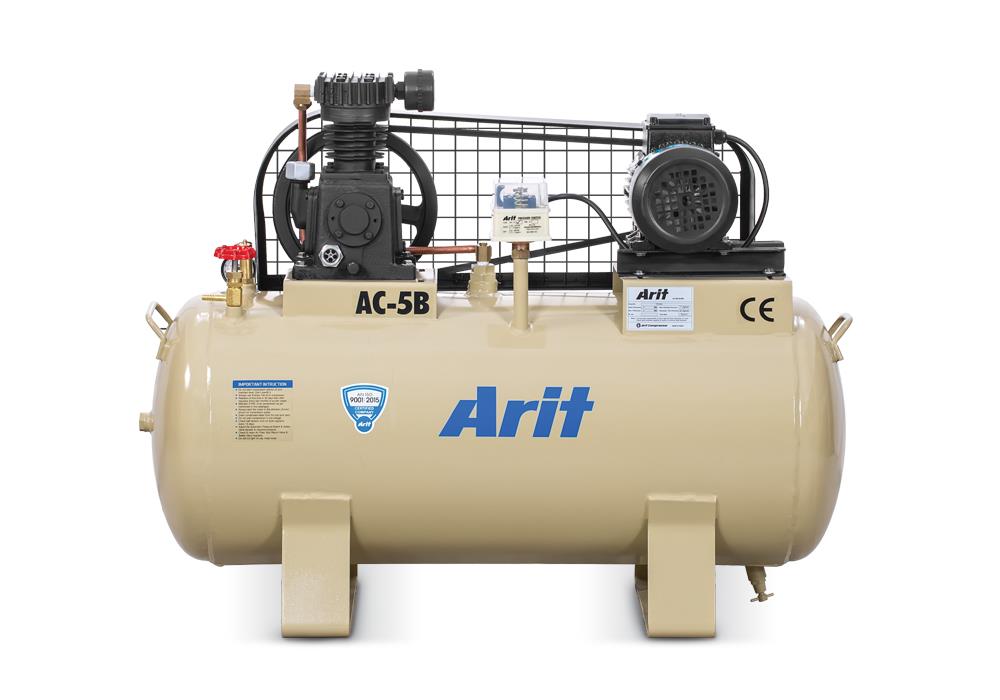

AC-5B
AC-5B

AC-5B
HP 1
Nos. Of Piston 2
Piston Displacement C.F.M. 5.25
Piston Bore X Stoke (In MM) 50.80 X 50.80
Tank Capacity In Liter 132
Tank Size 16” X 40”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-60 – 1 Nos.
Oil 0.350 Ltr
Compressor Weight (Approx) 80 Kg
Dimension - L X W X H (Approx) 42” X 18” X 32”

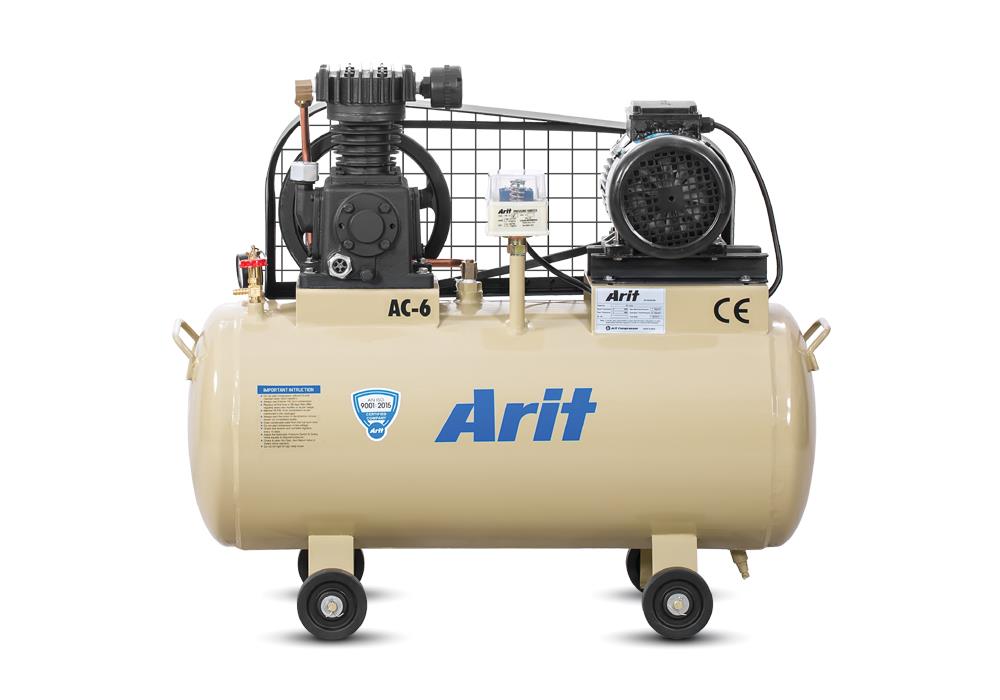

AC-6
AC-6

AC-6
HP 1.5
Nos. Of Piston 2
Piston Displacement C.F.M. 6.40
Piston Bore X Stoke (In MM) 57.15 X 50.80
Tank Capacity In Liter 80
Tank Size 14” X 32”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-56 – 1 Nos.
Oil 0.400 Ltr
Compressor Weight (Approx) 66 Kg
Dimension - L X W X H (Approx) 36” X 14” X 31”

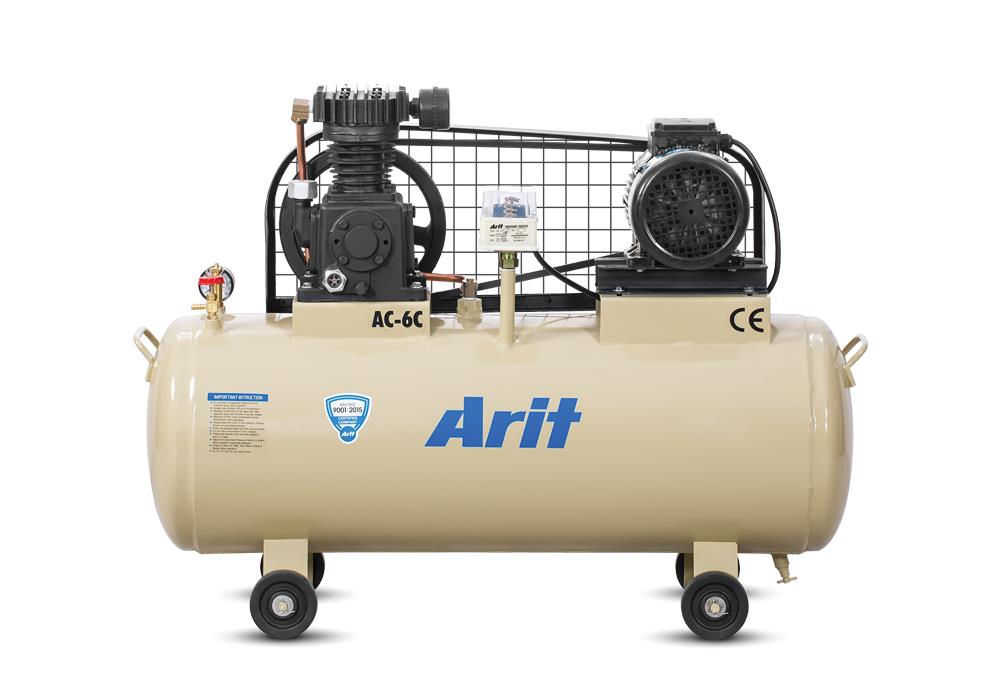

AC-6C
AC-6C

AC-6C
HP 1.5
Nos. Of Piston 2
Piston Displacement C.F.M. 6.40
Piston Bore X Stoke (In MM) 57.15 X 50.80
Tank Capacity In Liter 105
Tank Size 14” X 36”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-57 – 1 Nos.
Oil 0.400 Ltr
Compressor Weight (Approx) 70.600 Kg
Dimension - L X W X H (Approx) 41” X 14” X 31”

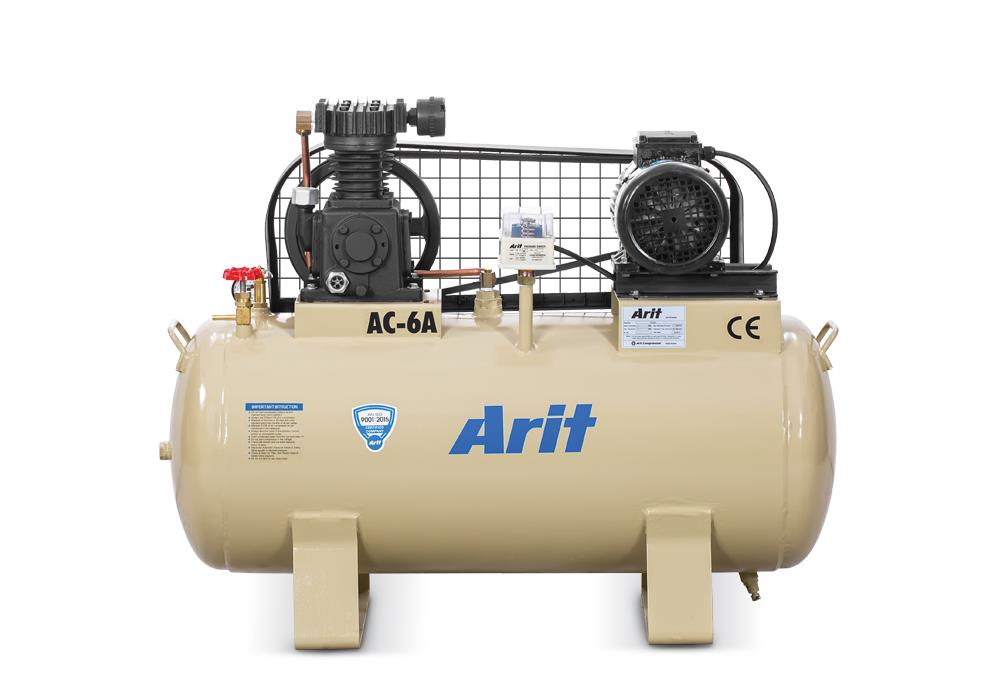

AC-6A
AC-6A

AC-6A
HP 1.5
Nos. Of Piston 2
Piston Displacement C.F.M. 6.40
Piston Bore X Stoke (In MM) 57.15 X 50.80
Tank Capacity In Liter 132
Tank Size 16” X 40”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-60 – 1 Nos.
Oil 0.400 Ltr
Compressor Weight (Approx) 81 Kg
Dimension - L X W X H (Approx) 42” X 18” X 32”

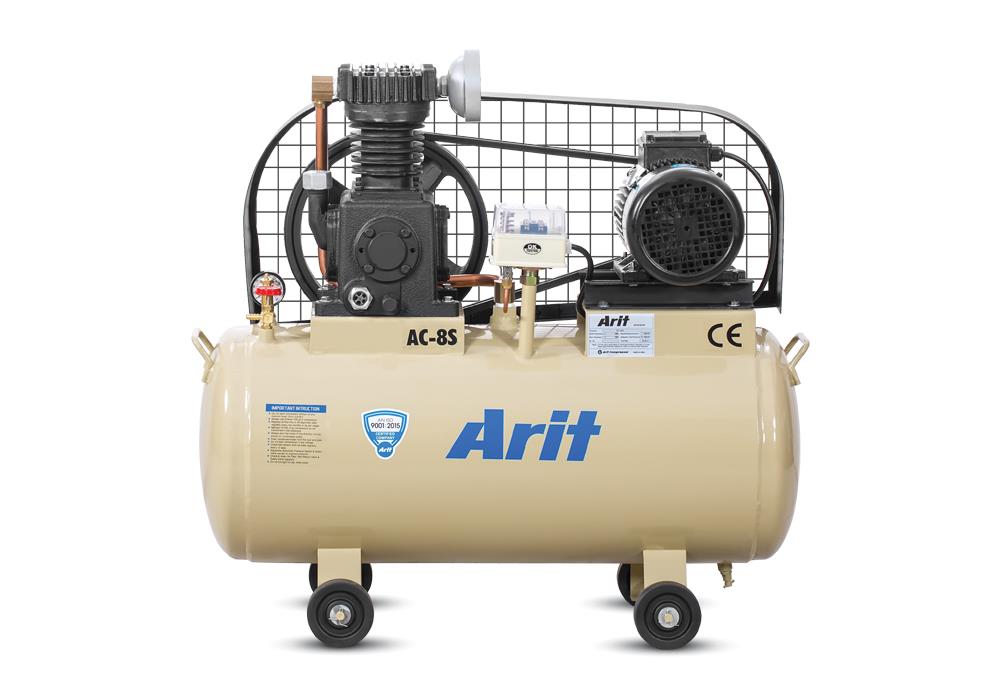

AC-8S
AC-8S

AC-8S
HP 2
Nos. Of Piston 2
Piston Displacement C.F.M. 9.15
Piston Bore X Stoke (In MM) 63.50 X 68.00
Tank Capacity In Liter 80
Tank Size 14” X 32”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 600
Motor RPM 1440
V-Belt B-62 – 2 Nos.
Oil 0.500 Ltr
Compressor Weight (Approx) 84 Kg
Dimension - L X W X H (Approx) 36” X 14” X 34”

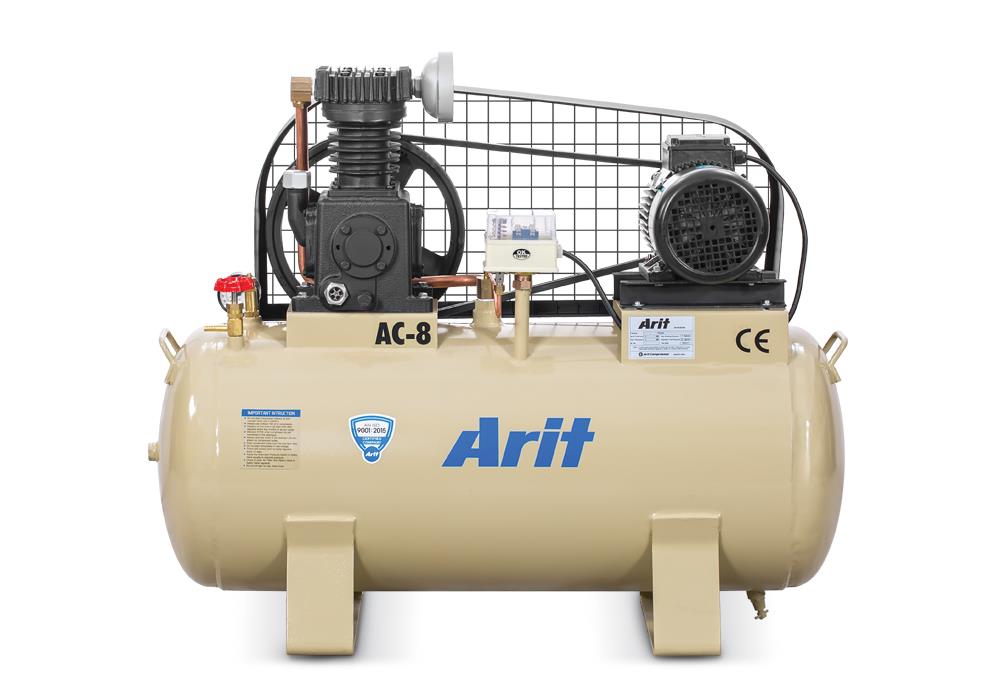

AC-8
AC-8

AC-8
HP 2
Nos. Of Piston 2
Piston Displacement C.F.M. 9.15
Piston Bore X Stoke (In MM) 63.50 X 68.00
Tank Capacity In Liter 132
Tank Size 16” X 40”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 3 MM
Compressor RPM 600
Motor RPM 1440
V-Belt B-66 – 2 Nos.
Oil 0.500 Ltr
Compressor Weight (Approx) 98 Kg
Dimension - L X W X H (Approx) 42” X 18” X 36”

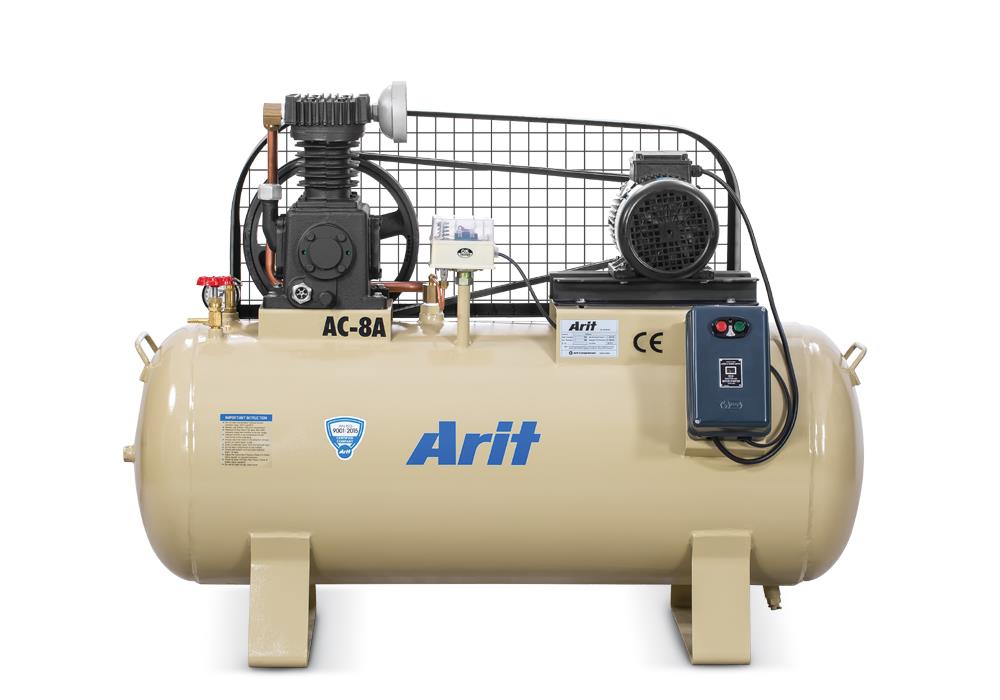

AC-8A
AC-8A

AC-8A
HP 2
Nos. Of Piston 2
Piston Displacement C.F.M. 9.15
Piston Bore X Stoke (In MM) 63.50 X 68.00
Tank Capacity In Liter 200
Tank Size 18” X 48”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 4 MM
Compressor RPM 600
Motor RPM 1440
V-Belt B-72 – 2 Nos.
Oil 0.500 Ltr
Compressor Weight (Approx) 130 Kg
Dimension - L X W X H (Approx) 51” X 20” X 38”

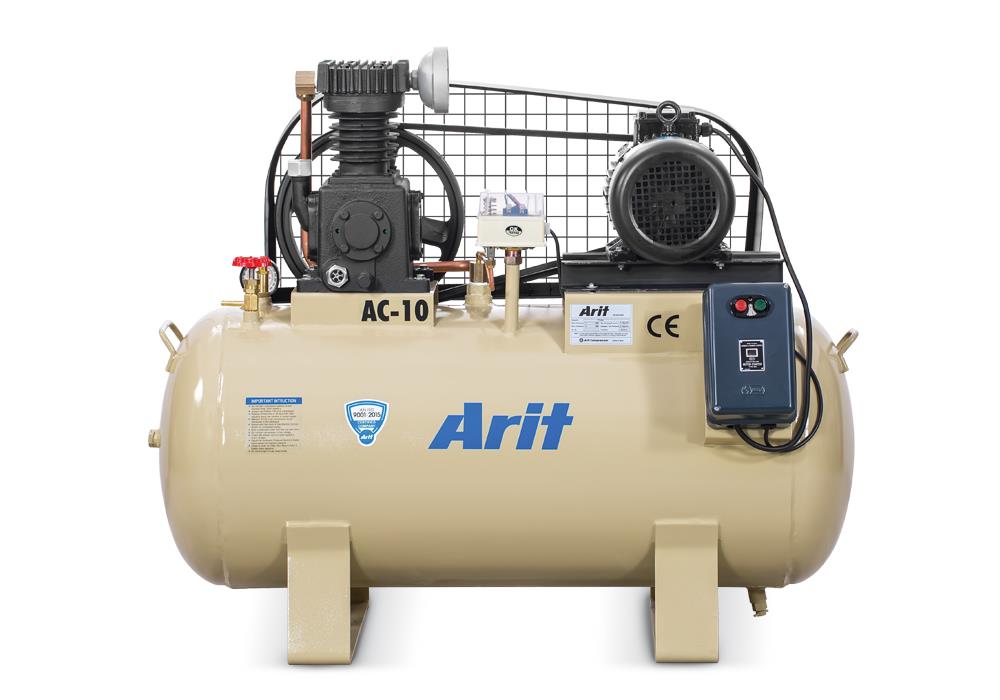

AC-10
AC-10

AC-10
HP 3
Nos. Of Piston 2
Piston Displacement C.F.M. 11
Piston Bore X Stoke (In MM) 63.50 X 68.00
Tank Capacity In Liter 175
Tank Size 18” X 42”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 4 MM
Compressor RPM 720
Motor RPM 1440
V-Belt B-66 – 2 Nos.
Oil 0.500 Ltr
Compressor Weight (Approx) 125 Kg
Dimension - L X W X H (Approx) 44” X 20” X 38”

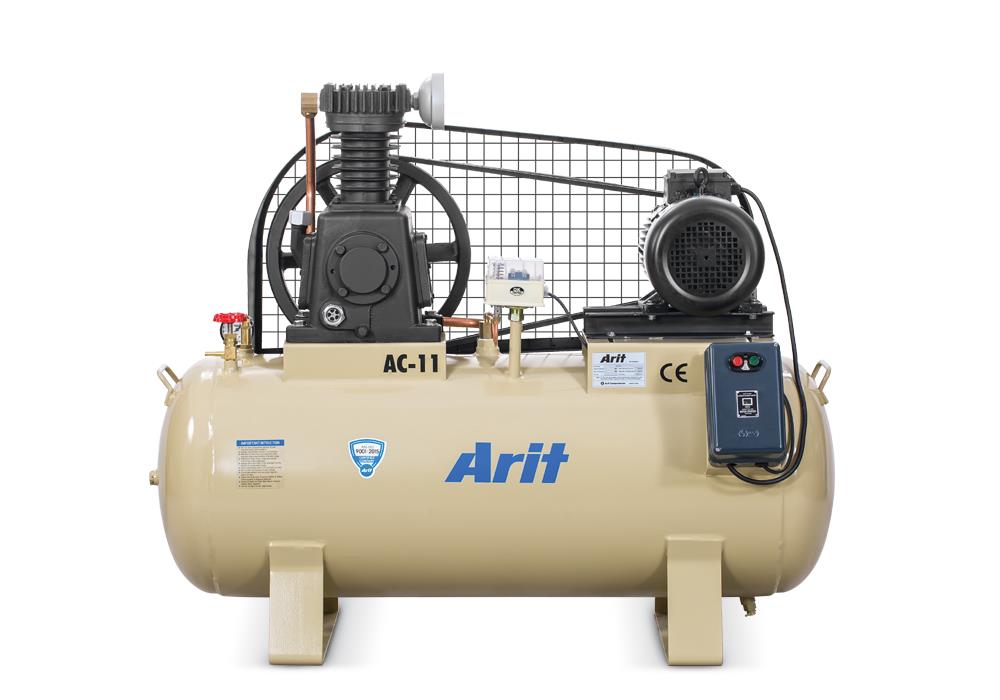

AC-11
AC-11

AC-11
HP 5
Nos. Of Piston 2
Piston Displacement C.F.M. 18.60
Piston Bore X Stoke (In MM) 76.20 X 88.90
Tank Capacity In Liter 200
Tank Size 18” X 48”
Max. Working Pressure 7 Kg
Shell & Dish End Thickness 4 MM
Compressor RPM 650
Motor RPM 1440
V-Belt B-85 – 2 Nos.
Oil 1.500 Ltr
Compressor Weight (Approx) 162 Kg
Dimension - L X W X H (Approx) 51” X 20” X 44”
